RP SMA 2100MHz 2dbi 90 Degree Bend 3G Antennas

Product Detail

3G 90 degree bend antenna



Product Description

  • There are elbow antenna and straight antenna, you can choose according to your design
  • The antenna housing is made of high-standard shielding material to ensure stable signal transmission and interference
  • SMAJ interface adopts copper material to ensure faster and more stable signal transmission
  • 2.4g +5.8G dual-frequency antenna, multi-layer detection, stable signal



Product Features

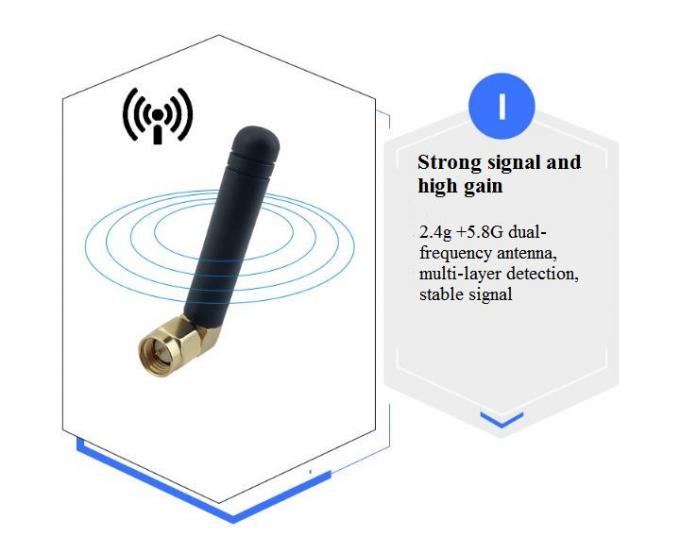

  • Strong signal and high gain

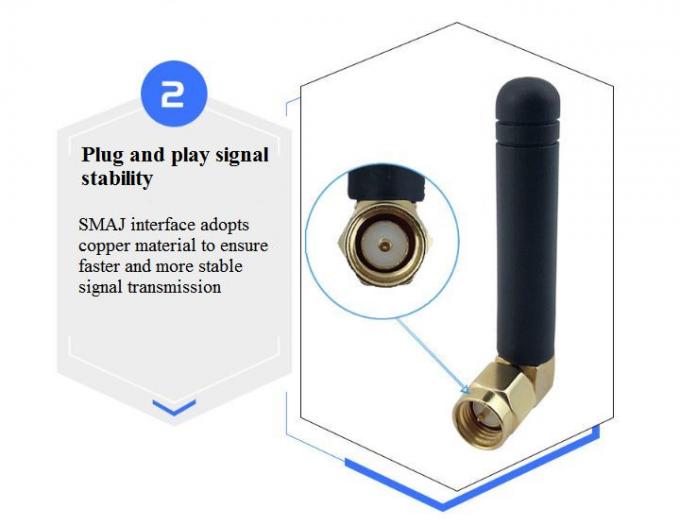

  • Plug and play signal stability

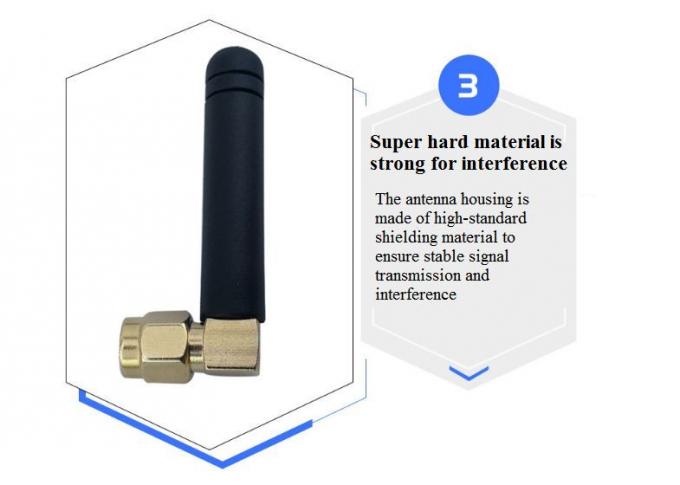

  • Super hard material is strong for interference

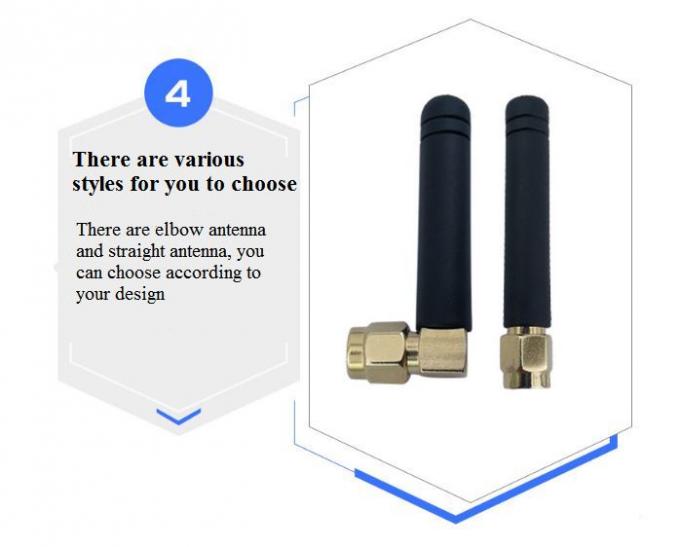

  • There are various styles for you to choose

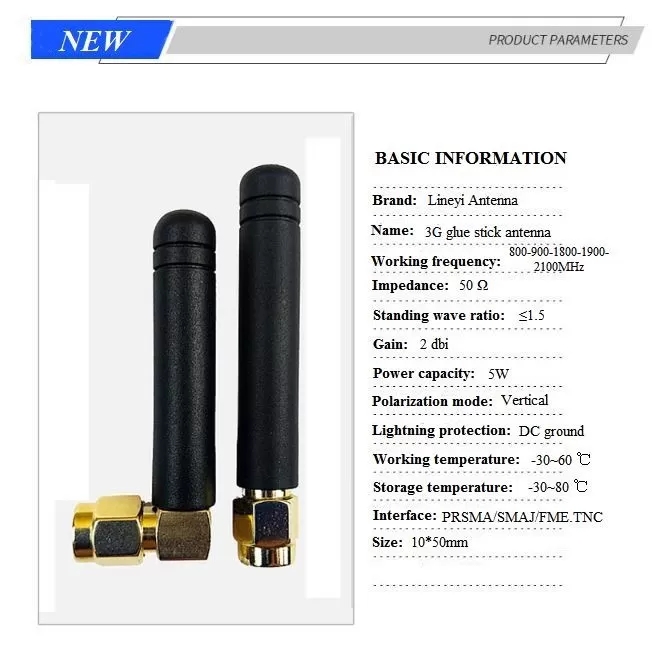

Product Details

Name3G 90 degree bend antenna
Working frequency800-900-1800-1900-2100MHz
Impedance50Ω
Standing wave ratio≤1.5
Gain2 dbi
Power Capacity5W
Polarization modeVertical
Lightning ProtectionDC ground
InterfaceRP SMA/SMAJ/FME.TNC
Size10*50mm

FAQ :



Q: What's your company MOQ?
A: In generally, we will ask at least 100~1000pcs, this we can negotiate.

Q: What's your delivery time?
A: This please check our stock in first, products can be sendtout once receive your payment. Usually, 7-14 days for mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: One year guarantee. Replacement of defective ones after negotiation.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but will ask a sample fee.
